Parameter

  Model: LD4070HF P50

  Power: 50W

  Size: 44mm * 47.5mm * 127mm

  Lens: Fixed Focus Lens

  Focal Length: 40mm

  Control Signal: PWM

  Control Signal Frequency: < 100kHz

---

Introduction

The unique control circuit design adopted by the LD4070HF P50 laser module reduces the ripple and greatly improves the service life and efficiency of the laser. The multi-fin design of the external radiator improves the working efficiency of the fan, effectively reduces the temperature during laser operation, and effectively improves the life of the laser tube. The unique windshield structure protects the laser lens from the smoke generated by laser burning, improves the life of the lens, and also ensures that the power output is not interfered by smoke and dust.The adjustable focus lens used by LD4070HF P50 is more flexible and convenient to use.

General specification

- Model: LD4070HF P50 (by voidmicro)

- Size: 44mm * 47.5mm * 127mm

- Optical Output Power: 8.5W

- Wavelength: 445-450nm

- Luminous Color: Blue

- Operating Voltage: 12V

- Module Input Power: 50W

- PWM/TTL Input: DC3.3V-12V 100Hz~50KHz Preferred: 5KHz

- Input Interface: XH2.54-3Pin (+,-, PWM/TTL)

- The best distance from the object to the lens: 40MM

- Operating Temperature: -20℃~70℃

- Life Time: 20,000 hours

- Continuously Working: Unlimited

- Heat Dissipation: Brass + Aluminum duct + Fan

- Can Engrave: Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum etc.

- Can Not Engrave: Partial Metal/Stainless Steel/Reflective Material etc.

Applications

- Laser cutting

- Laser engraving

- artwork

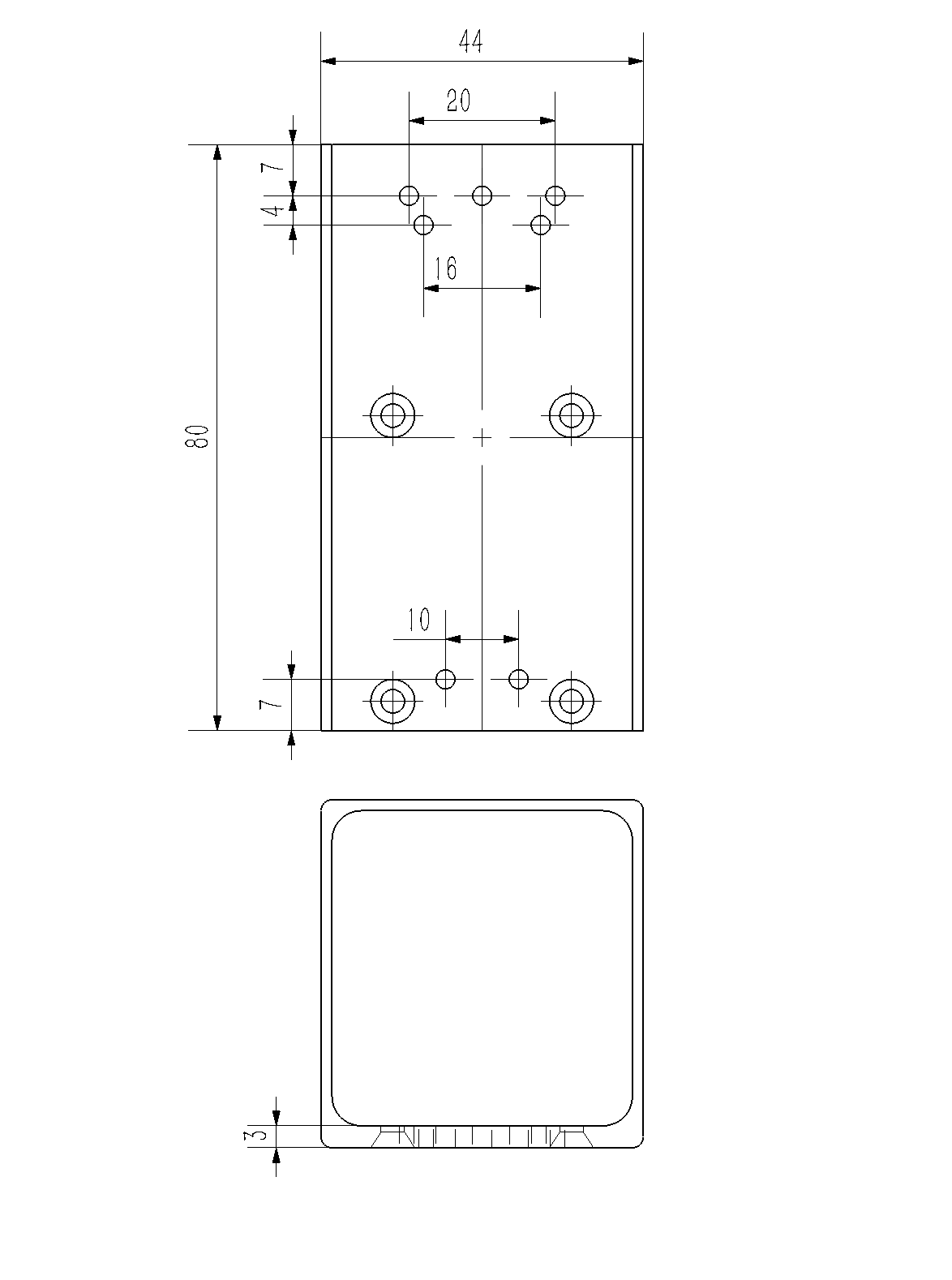

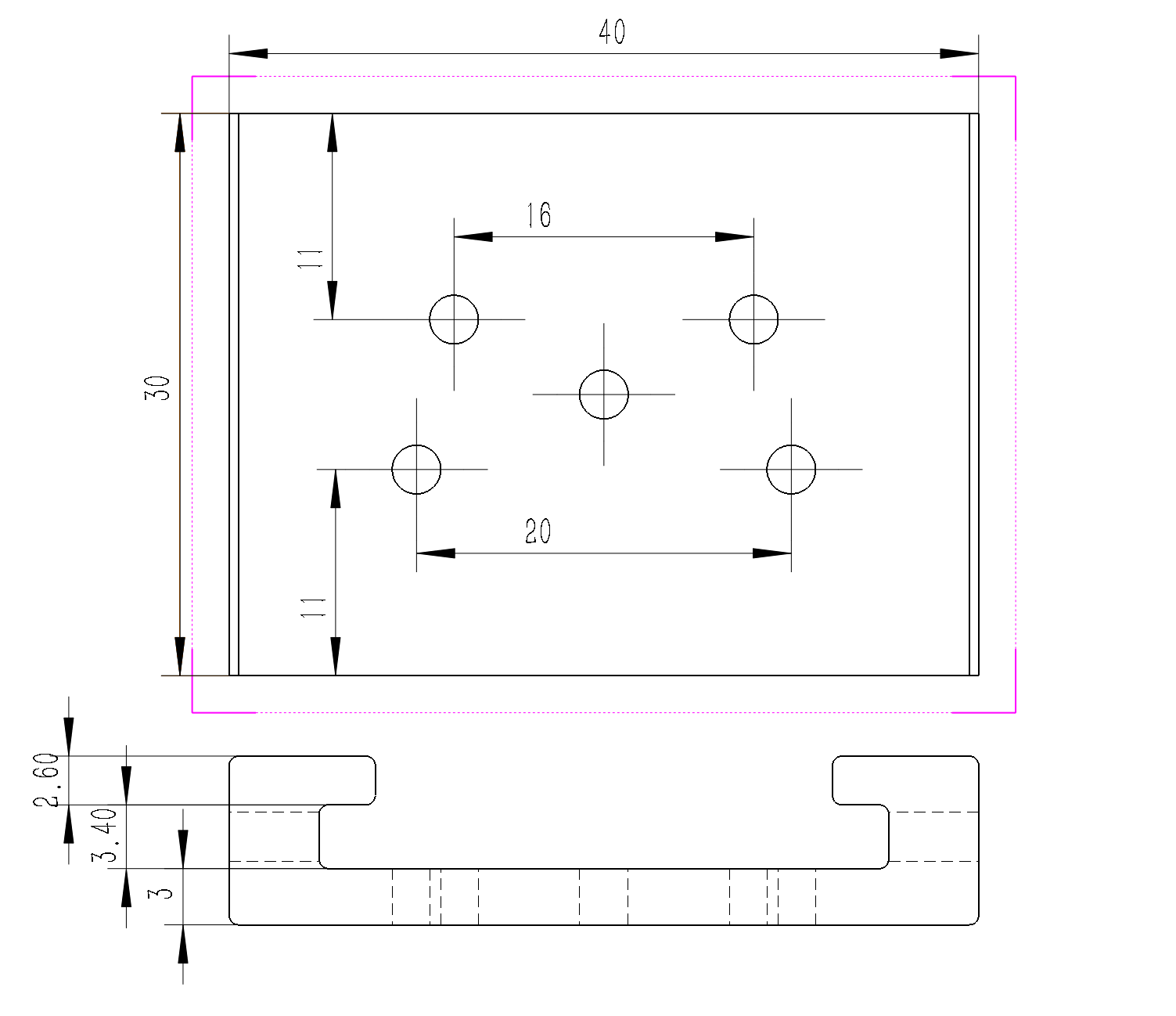

Mounting hole size

Interface and adapter board

Example of using adapter board
